Metric 13mm Male-Male Standoffs
Back To Male-Male Standoffs Page

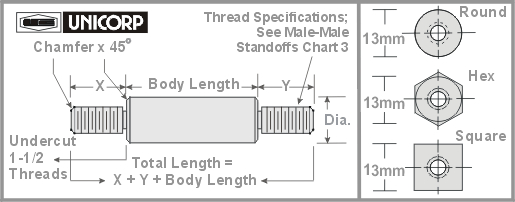

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
 Conversion Chart
 Am. Standard Male-Male
 Metric Male-Male
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1801 3 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1851 31 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1802 3.5 13 MMX1852 32 13
MMX1803 4 13 MMX1853 33 13
MMX1804 4.5 13 MMX1854 34 13
MMX1805 5 13 MMX1855 35 13
MMX1806 5.5 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1856 36 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1807 6 13 MMX1857 37 13
MMX1808 6.5 13 MMX1858 38 13
MMX1809 7 13 MMX1859 39 13
MMX1810 7.5 13 MMX1860 40 13
MMX1811 8 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1861 41 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1812 8.5 13 MMX1862 42 13
MMX1813 9 13 MMX1863 43 13
MMX1814 9.5 13 MMX1864 44 13
MMX1815 10 13 MMX1865 45 13
MMX1816 10.5 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1866 46 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1817 11 13 MMX1867 47 13
MMX1818 11.5 13 MMX1868 48 13
MMX1819 12 13 MMX1869 49 13
MMX1820 12.5 13 MMX1870 50 13
MMX1821 13 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1871 51 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1822 13.5 13 MMX1872 52 13
MMX1823 14 13 MMX1873 53 13
MMX1824 14.5 13 MMX1874 54 13
MMX1825 15 13 MMX1875 55 13
MMX1826 15.5 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1876 56 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1827 16 13 MMX1877 57 13
MMX1828 16.5 13 MMX1878 58 13
MMX1829 17 13 MMX1879 59 13
MMX1830 17.5 13 MMX1880 60 13
MMX1831 18 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1881 62 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1832 18.5 13 MMX1882 64 13
MMX1833 19 13 MMX1883 66 13
MMX1834 19.5 13 MMX1884 68 13
MMX1835 20 13 MMX1885 70 13
MMX1836 20.5 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1886 72 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1837 21 13 MMX1887 74 13
MMX1838 21.5 13 MMX1888 75 13
MMX1839 22 13 MMX1889 77 13
MMX1840 22.5 13 MMX1890 80 13
MMX1841 23 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1891 82 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1842 23.5 13 MMX1892 85 13
MMX1843 24 13 MMX1893 87 13
MMX1844 24.5 13 MMX1894 90 13
MMX1845 25 13 MMX1895 92 13
MMX1846 26 13 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1896 95 13 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1847 27 13 MMX1897 97 13
MMX1848 28 13 MMX1898 100 13
MMX1849 29 13
MMX1850 30 13
Thread Chart for Metric Male-Male Standoffs Part Number


Thread Size

Thread Code  &  Thread Length
M5 x 0.8  M5 - 1 9
M5 x 0.8  M5 - 2 9.5
M5 x 0.8  M5 - 3 10
M6 x 1  M6 - 1 11
M6 x 1  M6 - 2 12
M8 x 1.25  M8 - 1 12
M8 x 1.25  M8 - 2 13
*Mix and Match Different Threads and Lengths For Each Part.
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .25
Thread Length Tolerance is  ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
