Metric 10mm Swage Spacers
(Unthreaded / Clear Hole)

 Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  American Standard Swages
  Metric Swages

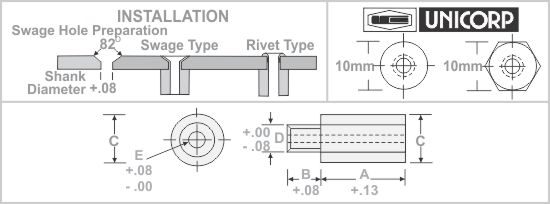

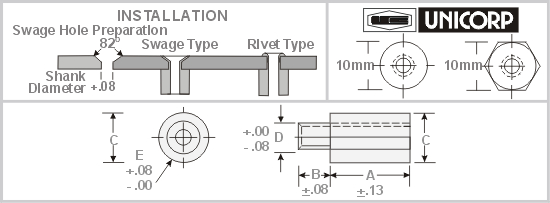

10mm -  Major Diameter  x  5.94 Shank  x  3.7 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part # A B C D E Part # A B C D E
MSU575 3 * 10 5.94 3.7 MSU598 14.5 * 10 5.94 3.7
MSU576 3.5 * 10 5.94 3.7 MSU599 15 * 10 5.94 3.7
MSU577 4 * 10 5.94 3.7 MSU600 15.5 * 10 5.94 3.7
MSU578 4.5 * 10 5.94 3.7 MSU601 16 * 10 5.94 3.7
MSU579 5 * 10 5.94 3.7 MSU602 16.5 * 10 5.94 3.7
MSU580 5.5 * 10 5.94 3.7 MSU603 17 * 10 5.94 3.7
MSU581 6 * 10 5.94 3.7 MSU604 17.5 * 10 5.94 3.7
MSU582 6.5 * 10 5.94 3.7 MSU605 18 * 10 5.94 3.7
MSU583 7 * 10 5.94 3.7 MSU606 18.5 * 10 5.94 3.7
MSU584 7.5 * 10 5.94 3.7 MSU607 19 * 10 5.94 3.7
MSU585 8 * 10 5.94 3.7 MSU608 19.5 * 10 5.94 3.7
MSU586 8.5 * 10 5.94 3.7 MSU609 20 * 10 5.94 3.7
MSU587 9 * 10 5.94 3.7 MSU610 20.5 * 10 5.94 3.7
MSU588 9.5 * 10 5.94 3.7 MSU611 21 * 10 5.94 3.7
MSU589 10 * 10 5.94 3.7 MSU612 21.5 * 10 5.94 3.7
MSU590 10.5 * 10 5.94 3.7 MSU613 22 * 10 5.94 3.7
MSU591 11 * 10 5.94 3.7 MSU614 22.5 * 10 5.94 3.7
MSU592 11.5 * 10 5.94 3.7 MSU615 23 * 10 5.94 3.7
MSU593 12 * 10 5.94 3.7 MSU616 23.5 * 10 5.94 3.7
MSU594 12.5 * 10 5.94 3.7 MSU617 24 * 10 5.94 3.7
MSU595 13 * 10 5.94 3.7 MSU618 24.5 * 10 5.94 3.7
MSU596 13.5 * 10 5.94 3.7 MSU619 25 * 10 5.94 3.7
MSU597 14 * 10 5.94 3.7 MSU620 25.5 * 10 5.94 3.7

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number

10mm Diameter

 UP5 AN820 AN1080 3 -  5.5mm MSU575 - MSU580
UP5 AN830 AN1090 6 - 12.5mm MSU581 - MSU594
UP5 AN840 AN1100 13 - 18.5mm MSU595 - MSU606
UP5 AN850 AN1110 19 - 25.5mm MSU607 - MSU620
10mm -  Major Diameter  x  5.94 Shank  x  4.3 Inside Diameter
SELECT PART NUMBER then Go to Build Part Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part # A B C D E Part # A B C D E
MSU625 3 * 10 5.94 4.3 MSU648 14.5 * 10 5.94 4.3
MSU626 3.5 * 10 5.94 4.3 MSU649 15 * 10 5.94 4.3
MSU627 4 * 10 5.94 4.3 MSU650 15.5 * 10 5.94 4.3
MSU628 4.5 * 10 5.94 4.3 MSU651 16 * 10 5.94 4.3
MSU629 5 * 10 5.94 4.3 MSU652 16.5 * 10 5.94 4.3
MSU630 5.5 * 10 5.94 4.3 MSU653 17 * 10 5.94 4.3
MSU631 6 * 10 5.94 4.3 MSU654 17.5 * 10 5.94 4.3
MSU632 6.5 * 10 5.94 4.3 MSU655 18 * 10 5.94 4.3
MSU633 7 * 10 5.94 4.3 MSU656 18.5 * 10 5.94 4.3
MSU634 7.5 * 10 5.94 4.3 MSU657 19 * 10 5.94 4.3
MSU635 8 * 10 5.94 4.3 MSU658 19.5 * 10 5.94 4.3
MSU636 8.5 * 10 5.94 4.3 MSU659 20 * 10 5.94 4.3
MSU637 9 * 10 5.94 4.3 MSU660 20.5 * 10 5.94 4.3
MSU638 9.5 * 10 5.94 4.3 MSU661 21 * 10 5.94 4.3
MSU639 10 * 10 5.94 4.3 MSU662 21.5 * 10 5.94 4.3
MSU640 10.5 * 10 5.94 4.3 MSU663 22 * 10 5.94 4.3
MSU641 11 * 10 5.94 4.3 MSU664 22.5 * 10 5.94 4.3
MSU642 11.5 * 10 5.94 4.3 MSU665 23 * 10 5.94 4.3
MSU643 12 * 10 5.94 4.3 MSU666 23.5 * 10 5.94 4.3
MSU644 12.5 * 10 5.94 4.3 MSU667 24 * 10 5.94 4.3
MSU645 13 * 10 5.94 4.3 MSU668 24.5 * 10 5.94 4.3
MSU646 13.5 * 10 5.94 4.3 MSU669 25 * 10 5.94 4.3
MSU647 14 * 10 5.94 4.3 MSU670 25.5 * 10 5.94 4.3

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number

10mm Diameter

 UP5 AN820 AN1080 3 -  5.5mm MSU625 - MSU630
UP5 AN830 AN1090 6 - 12.5mm MSU631 - MSU644
UP5 AN840 AN1100 13 - 18.5mm MSU645 - MSU656
UP5 AN850 AN1110 19 - 25.5mm MSU657 - MSU670
10mm -  Major Diameter  x  5.94 Shank  x  5.3 Inside Diameter
SELECT PART NUMBER then Go to Build Part Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part # A B C D E Part # A B C D E
MSU675 3 * 10 5.94 5.3 MSU698 14.5 * 10 5.94 5.3
MSU676 3.5 * 10 5.94 5.3 MSU699 15 * 10 5.94 5.3
MSU677 4 * 10 5.94 5.3 MSU700 15.5 * 10 5.94 5.3
MSU678 4.5 * 10 5.94 5.3 MSU701 16 * 10 5.94 5.3
MSU679 5 * 10 5.94 5.3 MSU702 16.5 * 10 5.94 5.3
MSU680 5.5 * 10 5.94 5.3 MSU703 17 * 10 5.94 5.3
MSU681 6 * 10 5.94 5.3 MSU704 17.5 * 10 5.94 5.3
MSU682 6.5 * 10 5.94 5.3 MSU705 18 * 10 5.94 5.3
MSU683 7 * 10 5.94 5.3 MSU706 18.5 * 10 5.94 5.3
MSU684 7.5 * 10 5.94 5.3 MSU707 19 * 10 5.94 5.3
MSU685 8 * 10 5.94 5.3 MSU708 19.5 * 10 5.94 5.3
MSU686 8.5 * 10 5.94 5.3 MSU709 20 * 10 5.94 5.3
MSU687 9 * 10 5.94 5.3 MSU710 20.5 * 10 5.94 5.3
MSU688 9.5 * 10 5.94 5.3 MSU711 21 * 10 5.94 5.3
MSU689 10 * 10 5.94 5.3 MSU712 21.5 * 10 5.94 5.3
MSU690 10.5 * 10 5.94 5.3 MSU713 22 * 10 5.94 5.3
MSU691 11 * 10 5.94 5.3 MSU714 22.5 * 10 5.94 5.3
MSU692 11.5 * 10 5.94 5.3 MSU715 23 * 10 5.94 5.3
MSU693 12 * 10 5.94 5.3 MSU716 23.5 * 10 5.94 5.3
MSU694 12.5 * 10 5.94 5.3 MSU717 24 * 10 5.94 5.3
MSU695 13 * 10 5.94 5.3 MSU718 24.5 * 10 5.94 5.3
MSU696 13.5 * 10 5.94 5.3 MSU719 25 * 10 5.94 5.3
MSU697 14 * 10 5.94 5.3 MSU720 25.5 * 10 5.94 5.3

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number

10mm Diameter

 UP5 AN820 AN1080 3 -  5.5mm MSU675 - MSU680
UP5 AN830 AN1090 6 - 12.5mm MSU681 - MSU694
UP5 AN840 AN1100 13 - 18.5mm MSU695 - MSU706
UP5 AN850 AN1110 19 - 25.5mm MSU707 - MSU720
