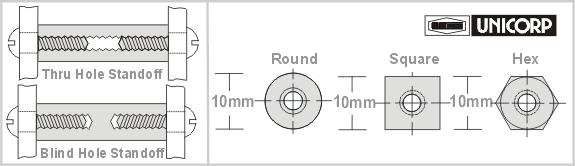

  Metric 10mm Standoffs (Threaded)

 Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
 ND Thread Codes		 Conversion Chart
American Standard Standoffs
Metric Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length Part # Length
MP1801 1 MP1860 30.5 MP1919 60 MP1978 89.5 MP2037 138 MP2096 197
MP1802 1.5 MP1861 31 MP1920 60.5 MP1979 90 MP2038 139 MP2097 198
MP1803 2 MP1862 31.5 MP1921 61 MP1980 90.5 MP2039 140 MP2098 199
MP1804 2.5 MP1863 32 MP1922 61.5 MP1981 91 MP2040 141 MP2099 200
MP1805 3 MP1864 32.5 MP1923 62 MP1982 91.5 MP2041 142 MP2100 201
MP1806 3.5 MP1865 33 MP1924 62.5 MP1983 92 MP2042 143 MP2101 202
MP1807 4 MP1866 33.5 MP1925 63 MP1984 92.5 MP2043 144 MP2102 203
MP1808 4.5 MP1867 34 MP1926 63.5 MP1985 93 MP2044 145 MP2103 204
MP1809 5 MP1868 34.5 MP1927 64 MP1986 93.5 MP2045 146 MP2104 205
MP1810 5.5 MP1869 35 MP1928 64.5 MP1987 94 MP2046 147 MP2105 206
MP1811 6 MP1870 35.5 MP1929 65 MP1988 94.5 MP2047 148 MP2106 207
MP1812 6.5 MP1871 36 MP1930 65.5 MP1989 95 MP2048 149 MP2107 208
MP1813 7 MP1872 36.5 MP1931 66 MP1990 95.5 MP2049 150 MP2108 209
MP1814 7.5 MP1873 37 MP1932 66.5 MP1991 96 MP2050 151 MP2109 210
MP1815 8 MP1874 37.5 MP1933 67 MP1992 96.5 MP2051 152 MP2110 211
MP1816 8.5 MP1875 38 MP1934 67.5 MP1993 97 MP2052 153 MP2111 212
MP1817 9 MP1876 38.5 MP1935 68 MP1994 97.5 MP2053 154 MP2112 213
MP1818 9.5 MP1877 39 MP1936 68.5 MP1995 98 MP2054 155 MP2113 214
MP1819 10 MP1878 39.5 MP1937 69 MP1996 98.5 MP2055 156 MP2114 215
MP1820 10.5 MP1879 40 MP1938 69.5 MP1997 99 MP2056 157 MP2115 216
MP1821 11 MP1880 40.5 MP1939 70 MP1998 99.5 MP2057 158 MP2116 217
MP1822 11.5 MP1881 41 MP1940 70.5 MP1999 100 MP2058 159 MP2117 218
MP1823 12 MP1882 41.5 MP1941 71 MP2000 101 MP2059 160 MP2118 219
MP1824 12.5 MP1883 42 MP1942 71.5 MP2001 102 MP2060 161 MP2119 220
MP1825 13 MP1884 42.5 MP1943 72 MP2002 103 MP2061 162 MP2120 221
MP1826 13.5 MP1885 43 MP1944 72.5 MP2003 104 MP2062 163 MP2121 222
MP1827 14 MP1886 43.5 MP1945 73 MP2004 105 MP2063 164 MP2122 223
MP1828 14.5 MP1887 44 MP1946 73.5 MP2005 106 MP2064 165 MP2123 224
MP1829 15 MP1888 44.5 MP1947 74 MP2006 107 MP2065 166 MP2124 225
MP1830 15.5 MP1889 45 MP1948 74.5 MP2007 108 MP2066 167 MP2125 226
MP1831 16 MP1890 45.5 MP1949 75 MP2008 109 MP2067 168 MP2126 227
MP1832 16.5 MP1891 46 MP1950 75.5 MP2009 110 MP2068 169 MP2127 228
MP1833 17 MP1892 46.5 MP1951 76 MP2010 111 MP2069 170 MP2128 229
MP1834 17.5 MP1893 47 MP1952 76.5 MP2011 112 MP2070 171 MP2129 230
MP1835 18 MP1894 47.5 MP1953 77 MP2012 113 MP2071 172 MP2130 231
MP1836 18.5 MP1895 48 MP1954 77.5 MP2013 114 MP2072 173 MP2131 232
MP1837 19 MP1896 48.5 MP1955 78 MP2014 115 MP2073 174 MP2132 233
MP1838 19.5 MP1897 49 MP1956 78.5 MP2015 116 MP2074 175 MP2133 234
MP1839 20 MP1898 49.5 MP1957 79 MP2016 117 MP2075 176 MP2134 235
MP1840 20.5 MP1899 50 MP1958 79.5 MP2017 118 MP2076 177 MP2135 236
MP1841 21 MP1900 50.5 MP1959 80 MP2018 119 MP2077 178 MP2136 237
MP1842 21.5 MP1901 51 MP1960 80.5 MP2019 120 MP2078 179 MP2137 238
MP1843 22 MP1902 51.5 MP1961 81 MP2020 121 MP2079 180 MP2138 239
MP1844 22.5 MP1903 52 MP1962 81.5 MP2021 122 MP2080 181 MP2139 240
MP1845 23 MP1904 52.5 MP1963 82 MP2022 123 MP2081 182 MP2140 241
MP1846 23.5 MP1905 53 MP1964 82.5 MP2023 124 MP2082 183 MP2141 242
MP1847 24 MP1906 53.5 MP1965 83 MP2024 125 MP2083 184 MP2142 243
MP1848 24.5 MP1907 54 MP1966 83.5 MP2025 126 MP2084 185 MP2143 244
MP1849 25 MP1908 54.5 MP1967 84 MP2026 127 MP2085 186 MP2144 245
MP1850 25.5 MP1909 55 MP1968 84.5 MP2027 128 MP2086 187 MP2145 246
MP1851 26 MP1910 55.5 MP1969 85 MP2028 129 MP2087 188 MP2146 247
MP1852 26.5 MP1911 56 MP1970 85.5 MP2029 130 MP2088 189 MP2147 248
MP1853 27 MP1912 56.5 MP1971 86 MP2030 131 MP2089 190 MP2148 249
MP1854 27.5 MP1913 57 MP1972 86.5 MP2031 132 MP2090 191 MP2149 250
MP1855 28 MP1914 57.5 MP1973 87 MP2032 133 MP2091 192 MP2150 251
MP1856 28.5 MP1915 58 MP1974 87.5 MP2033 134 MP2092 193 MP2151 252
MP1857 29 MP1916 58.5 MP1975 88 MP2034 135 MP2093 194 MP2152 253
MP1858 29.5 MP1917 59 MP1976 88.5 MP2035 136 MP2094 195 MP2153 254
MP1859 30 MP1918 59.5 MP1977 89 MP2036 137 MP2095 196 X X
