Slide Top Standoffs SKC-U

Self Clinching Fasteners • Standoffs For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Slide Top SKC

• Self-clinching    • Panel installed quickly by sliding into place    • Can be removed by sliding panel sideways and lifting off
• Prevents loose hardware    • Allows for vertical or horizontal mounting
• Used for detachable spacing of two sheets    • One side has flush head
• Can be used with captive threaded standoff to lock board into place

American Standard Sizes: • Series SKC-U

Metric Sizes: • Series SKC-U

Series SKC-U

Series SKC-U / American Standard Sizes

      • Bottom Sheet Min. Thickness-  0.040"
      • Bottom Sheet Mounting Hole-  0.213"
      • Top Sheet Thickness Range-  0.057" - 0.064"
      • Top Sheet Mounting Hole A1 Nom.-  0.059"
      • Top Sheet Mounting Hole A2-  0.118"
      • Top Sheet Mounting Hole A3-  0.197"
      • Top Sheet Mounting Hole A4 Min.-  0.148"
      • Top Sheet Material-  Any
      • Bottom Sheet Edge Distance C1 Min.-  0.260"
      • Bottom Sheet Location Tolerance "E"
               Max.-  0.005"
      • Top Sheet Edge Distance C2 Min.-  0.160"
      • Bottom Sheet Hardness Max.-  HRB 70 / HB 125 or Less
      • Material-  300 Series Stainless Steel
      • Finish-  Passivated per ASTM A380

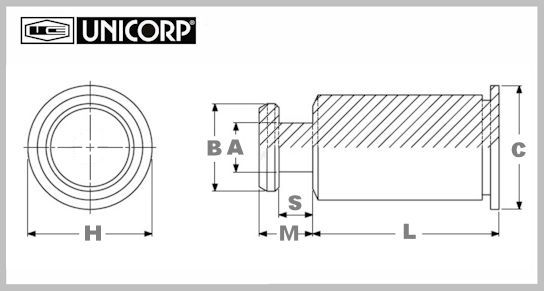

UNICORP Electronic Hardware Self-Clinching Fasteners - Slide Top SKC-U

Series SKC-U
American Standard Sizes
(SAE)

Part
Number

"S"

"H"
Nom.

Head
Shape

"L"
Length

"A"

"B"

"C"
Max.

"D"
Anvil
Hole

"M"
Max.

Mil-Spec

SKC-6060-2-U

0.068"

1/4"

Round

0.063"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-4-U

0.068"

1/4"

Round

0.125"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-6-U

0.068"

1/4"

Round

0.188"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-8-U

0.068"

1/4"

Round

0.250"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-10-U

0.068"

1/4"

Round

0.312"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-12-U

0.068"

1/4"

Round

0.375"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-14-U

0.068"

1/4"

Round

0.437"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-16-U

0.068"

1/4"

Round

0.500"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-18-U

0.068"

1/4"

Round

0.562"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-20-U

0.068"

1/4"

Round

0.625"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-24-U

0.068"

1/4"

Round

0.750"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-28-U

0.068"

1/4"

Round

0.875"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

SKC-6060-32-U

0.068"

1/4"

Round

1.000"

0.99"

0.177"

0.212"

0.216"

0.108"

N/A

Series SKC-U / Metric Sizes

      • Bottom Sheet Min. Thickness-  1.02 mm
      • Bottom Sheet Mounting Hole-  5.41 mm
      • Top Sheet Thickness Range-  1.45 mm - 1.62 mm
      • Top Sheet Mounting Hole A1 Nom.-  1.50 mm
      • Top Sheet Mounting Hole A2-  3.00 mm
      • Top Sheet Mounting Hole A3-  5.00 mm
      • Top Sheet Mounting Hole A4 Min.-  3.75 mm
      • Top Sheet Material-  Any
      • Bottom Sheet Edge Distance C1 Min.-  6.60 mm
      • Bottom Sheet Location Tolerance "E"
               Max.-  0.130"
      • Top Sheet Edge Distance C2 Min.-  4.10 mm
      • Bottom Sheet Hardness Max.-  HRB 70 / HB 125 or Less
      • Material-  300 Series Stainless Steel
      • Finish-  Passivated per ASTM A380

Series SKC-U
Metric Sizes

Part
Number

"S"

"H"
Nom.

Head
Shape

"L"
Length

"A"

"B"

"C"
Max.

"D"
Anvil
Hole

"M"
Max.

Mil-Spec

SKC-61.5-2-U

1.72
mm

6.35
mm

Round

2.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-4-U

1.72
mm

6.35
mm

Round

4.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-6-U

1.72
mm

6.35
mm

Round

6.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-8-U

1.72
mm

6.35
mm

Round

8.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-10-U

1.72
mm

6.35
mm

Round

10.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-12-U

1.72
mm

6.35
mm

Round

12.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-14-U

1.72
mm

6.35
mm

Round

14.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-16-U

1.72
mm

6.35
mm

Round

16.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-18-U

1.72
mm

6.35
mm

Round

18.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-20-U

1.72
mm

6.35
mm

Round

20.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-22-U

1.72
mm

6.35
mm

Round

22.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A

SKC-61.5-25-U

1.72
mm

6.35
mm

Round

25.00
mm

2.51
mm

4.50
mm

5.39
mm

2.75
mm

N/A
