Panel to Panel Joining Fasteners  SKC-F-U

Self Clinching Fasteners  •  Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes
• Self-clinching    • Allows flush joining    • Used to attach 2 panels
• Can be used in thin sheets that can't be welded or sheets with different thicknesses
• Corrosion resistant   • Used in replacement of riveting and welding    • No special tools necessary
• Both sides flush    • Can be installed blind into bottom panel by sliding panel into place
• Used with flush nut
American Standard Sizes:   • Series  SKC-F-U
Metric Sizes:   • Series  SKC-F-U
Series  SKC-F-U

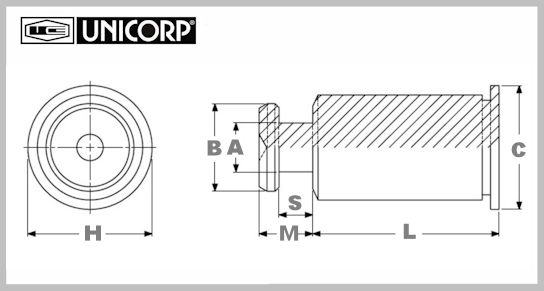

Series  SKC-F-U  /  American Standard Sizes

      • "A" Max.-  0.039"
      • "B"-  0.177"
      • "C" Max.-  0.212"
      • "D" Anvil Hole-  0.184"
      • "H" Nom.-  0.237"
      • "M" Max.-  0.108"
      • "N"-  0.099"
      • "S"-  0.068"
      • Panel 1 Edge Distance "C1" Min.-  0.150"
      • Panel 1 Location Tolerance "E" Max.-  0.005"
      • Panel 2 Edge Distance "C2" Min.-  0.160"
      • Material-  300 Series Stainless Steel
      • Finish-  Passivated per ASTM A380
      • Mil-Spec-  N/A
Series SKC-F-U
American Standard Sizes (SAE)
Part
Number		 Panel 1
Thickness		 Panel 1
Mounting
Hole		 Panel 2
Thickness
Range		 Panel 2
Mounting
Hole A1
Nom.		 Panel 2
Mounting
Hole A2		 Panel 2
Mounting
Hole A3		 Panel 2
Mounting
Hole A4
Min.		 Panel 1
Hardness
Max.		 Panel 2
Material
  SKC-F1.5-U 0.039" 0.213" 0.057" - 0.064" 0.059" 0.118" 0.197" 0.148" HRB 70 / HB 125 Any
Series  SKC-F-U  /  Metric Sizes

      • "A" Max.-  1.00 mm
      • "B"-  4.50 mm
      • "C" Max.-  5.39 mm
      • "D" Anvil Hole-  4.67 mm
      • "H" Nom.-  6.02 mm
      • "M" Max.-  2.75 mm
      • "N"-  2.50 mm
      • "S"-  1.72 mm
      • Panel 1 Edge Distance "C1" Min.-  3.80 mm
      • Panel 1 Location Tolerance "E" Max.-  0.130"
      • Panel 2 Edge Distance "C2" Min.-  4.10 mm
      • Material-  300 Series Stainless Steel
      • Finish-  Passivated per ASTM A380
      • Mil-Spec-  N/A
Series SKC-F-U
Metric Sizes
Part
Number		 Panel 1
Thickness		 Panel 1
Mounting
Hole		 Panel 2
Thickness
Range		 Panel 2
Mounting
Hole A1
Nom.		 Panel 2
Mounting
Hole A2		 Panel 2
Mounting
Hole A3		 Panel 2
Mounting
Hole A4
Min.		 Panel 1
Hardness
Max.		 Panel 2
Material
  SKCM-F1.5-U 1.00
mm		 5.41
mm		 1.45 - 1.62
mm		 1.50
mm		 3.00
mm		 5.00
mm		 3.75
mm		 HRB 70 / HB 125 Any
