Screw Head Without Spring
PFHV-U,  PFHVLS-U,  PFHVL-U


Self Clinching Fasteners  •  Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes
• Self-clinching    • Low profile design    • Small size    • Held captive to a panel
• Installed by tool or hand    • Remains flush on one side    • Installed quickly and easily
American Standard Sizes:   • Series PFHV-U    • Series PFHVLS-U    • Series PFHVL-U
Metric Sizes:   • Series PFHV-U    • Series PFHVLS-U    • Series PFHVL-U

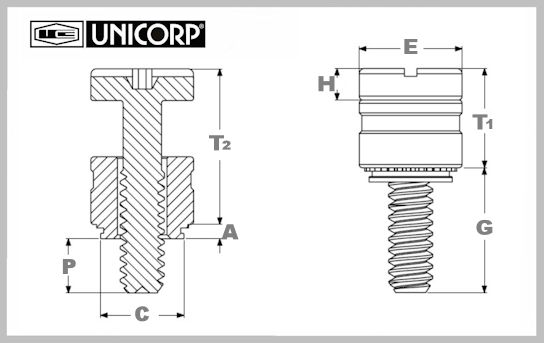

Series  PFHV-U
Series  PFHV-U  /  American Standard Sizes
      • "A" (Shank) Max.-  0.036"
      • Min. Sheet Thickness-  0.036"
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Retainer Material-  Carbon Steel
      • Screw Material-  Heat-Treated Carbon Steel
      • Mil-Spec-  N/A
                            STANDARD FINISH
      • Retainer Finish-  Bright nickel over copper flash per ASTM B689
      • Screw Finish-  Bright nickel over copper flash per ASTM B689
Series PFHV-U
American Standard Sizes (SAE)
Part
Number
Thread "C"
Max.
"E" "G" "H" "P" "T1"
Max.
"T2"
Nom.
Driver
Type
Hole
in Sheet
Min.
Distance
to Edge
  PFHV-440-0-CN-U 4-40 0.202" 0.260" 0.216" 0.080" 0.000" 0.260" 0.436" Slotted
#1 Phillips
0.203" 0.210"
  PFHV-440-1-CN-U 4-40 0.202" 0.260" 0.316" 0.080" 0.095" 0.260" 0.436" Slotted
#1 Phillips
0.203" 0.210"
  PFHV-632-0-CN-U 6-32 0.218" 0.276" 0.234" 0.092" 0.000" 0.290" 0.484" Slotted
#2 Phillips
0.219" 0.230"
  PFHV-632-1-CN-U 6-32 0.218" 0.276" 0.359" 0.092" 0.120" 0.290" 0.484" Slotted
#2 Phillips
0.219" 0.230"
  PFHV-832-0-CN-U 8-32 0.251" 0.309" 0.259" 0.111" 0.000" 0.335" 0.555" Slotted
#2 Phillips
0.252" 0.260"
  PFHV-832-1-CN-U 8-32 0.251" 0.309" 0.371" 0.111" 0.106" 0.335" 0.555" Slotted
#2 Phillips
0.252" 0.260"
Series  PFHV-U  /  Metric Sizes
      • "A" (Shank) Max.-  0.92 mm
      • Min. Sheet Thickness-  0.92 mm
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Retainer Material-  Carbon Steel
      • Screw Material-  Heat-Treated Carbon Steel
      • Mil-Spec-  N/A
                            STANDARD FINISH
      • Retainer Finish-  Bright nickel over copper flash per ASTM B689
      • Screw Finish-  Bright nickel over copper flash per ASTM B689
Series PFHV-U
Metric Sizes
Part
Number
Thread "C"
Max.
"E" "G" "H" "P" "T1"
Max.
"T2"
Nom.
Driver
Type
Hole
in Sheet
Min.
Distance
to Edge
  PFHV-M3-0-CN-U M3 x 0.5 5.59
mm
6.95
mm
5.55
mm
2.03
mm
0.00
mm
6.69
mm
11.25
mm
Slotted
#1 Phillips
5.50
mm
5.80
mm
  PFHV-M3-1-CN-U M3 x 0.5 5.59
mm
6.95
mm
7.56
mm
2.03
mm
1.90
mm
6.69
mm
11.25
mm
Slotted
#1 Phillips
5.50
mm
5.80
mm
  PFHV-M3.5-0-CN-U M3.5 x 0.6 5.98
mm
7.45
mm
6.01
mm
2.34
mm
0.00
mm
7.45
mm
12.47
mm
Slotted
#2 Phillips
6.00
mm
6.30
mm
  PFHV-M3.5-1-CN-U M3.5 x 0.6 5.98
mm
7.45
mm
8.42
mm
2.34
mm
2.30
mm
7.45
mm
12.47
mm
Slotted
#2 Phillips
6.00
mm
6.30
mm
  PFHV-M4-0-CN-U M4 x 0.7 6.38
mm
7.85
mm
6.59
mm
2.79
mm
0.00
mm
8.50
mm
14.10
mm
Slotted
#2 Phillips
6.40
mm
6.70
mm
  PFHV-M4-1-CN-U M4 x 0.7 6.38
mm
7.85
mm
9.39
mm
2.79
mm
2.70
mm
8.50
mm
14.10
mm
Slotted
#2 Phillips
6.40
mm
6.70
mm
Series  PFHVLS-U
Series  PFHVLS-U  /  American Standard Sizes
      • "A" (Shank) Max.-  0.036"
      • Min. Sheet Thickness-  0.036"
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Retainer Material-  Carbon Steel
      • Screw Material-  Heat-Treated Carbon Steel
      • Mil-Spec-  N/A
                            STANDARD FINISH
      • Retainer Finish-  Bright nickel over copper flash per ASTM B689
      • Screw Finish-  Bright nickel over copper flash per ASTM B689
Series PFHVLS-U
American Standard Sizes (SAE)
Part
Number
Thread "C"
Max.
"E" "G" "H" "P" "T1"
Max.
"T2"
Nom.
Driver
Type
Hole
in Sheet
Min.
Distance
to Edge
  PFHVLS-440-0-CN-U 4-40 0.202" 0.260" 0.216" 0.080" 0.000" 0.260" 0.436" Torx®/Slot Combination 0.203" 0.210"
  PFHVLS-440-1-CN-U 4-40 0.202" 0.260" 0.316" 0.080" 0.095" 0.260" 0.436" Torx®/Slot Combination 0.203" 0.210"
  PFHVLS-632-0-CN-U 6-32 0.218" 0.276" 0.234" 0.092" 0.000" 0.290" 0.484" Torx®/Slot Combination 0.219" 0.230"
  PFHVLS-632-1-CN-U 6-32 0.218" 0.276" 0.359" 0.092" 0.120" 0.290" 0.484" Torx®/Slot Combination 0.219" 0.230"
  PFHVLS-832-0-CN-U 8-32 0.251" 0.309" 0.259" 0.111" 0.000" 0.335" 0.555" Torx®/Slot Combination 0.252" 0.260"
  PFHVLS-832-1-CN-U 8-32 0.251" 0.309" 0.371" 0.111" 0.106" 0.335" 0.555" Torx®/Slot Combination 0.252" 0.260"
Series  PFHVLS-U  /  Metric Sizes
      • "A" (Shank) Max.-  0.92 mm
      • Min. Sheet Thickness-  0.92 mm
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Retainer Material-  Carbon Steel
      • Screw Material-  Heat-Treated Carbon Steel
      • Mil-Spec-  N/A
                            STANDARD FINISH
      • Retainer Finish-  Bright nickel over copper flash per ASTM B689
      • Screw Finish-  Bright nickel over copper flash per ASTM B689
Series PFHVLS-U
Metric Sizes
Part
Number
Thread "C"
Max.
"E" "G" "H" "P" "T1"
Max.
"T2"
Nom.
Driver
Type
Hole
in Sheet
Min.
Distance
to Edge
  PFHVLS-M3-0-CN-U M3 x 0.5 5.59
mm
6.95
mm
5.55
mm
2.03
mm
0.00
mm
6.69
mm
11.25
mm
Torx®/Slot Combination 5.50
mm
5.80
mm
  PFHVLS-M3-1-CN-U M3 x 0.5 5.59
mm
6.95
mm
7.56
mm
2.03
mm
1.90
mm
6.69
mm
11.25
mm
Torx®/Slot Combination 5.50
mm
5.80
mm
  PFHVLS-M3.5-0-CN-U M3.5 x 0.6 5.98
mm
7.45
mm
6.01
mm
2.34
mm
0.00
mm
7.45
mm
12.47
mm
Torx®/Slot Combination 6.00
mm
6.30
mm
  PFHVLS-M3.5-1-CN-U M3.5 x 0.6 5.98
mm
7.45
mm
8.42
mm
2.34
mm
2.30
mm
7.45
mm
12.47
mm
Torx®/Slot Combination 6.00
mm
6.30
mm
  PFHVLS-M4-0-CN-U M4 x 0.7 6.38
mm
7.85
mm
6.59
mm
2.79
mm
0.00
mm
8.50
mm
14.10
mm
Torx®/Slot Combination 6.40
mm
6.70
mm
  PFHVLS-M4-1-CN-U M4 x 0.7 6.38
mm
7.85
mm
9.39
mm
2.79
mm
2.70
mm
8.50
mm
14.10
mm
Torx®/Slot Combination 6.40
mm
6.70
mm
Series  PFHVL-U
Series  PFHVL-U  /  American Standard Sizes
      • "A" (Shank) Max.-  0.036"
      • Min. Sheet Thickness-  0.036"
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Retainer Material-  Carbon Steel
      • Screw Material-  Heat-Treated Carbon Steel
      • Mil-Spec-  N/A
                            STANDARD FINISH
      • Retainer Finish-  Bright nickel over copper flash per ASTM B689
      • Screw Finish-  Bright nickel over copper flash per ASTM B689
Series PFHVL-U
American Standard Sizes (SAE)
Part
Number
Thread "C"
Max.
"E" "G" "H" "P" "T1"
Max.
"T2"
Nom.
Driver
Type
Hole
in Sheet
Min.
Distance
to Edge
  PFHVL-440-0-CN-U 4-40 0.202" 0.260" 0.216" 0.080" 0.000" 0.260" 0.436" Torx® /
Torx Plus®
0.203" 0.210"
  PFHVL-440-1-CN-U 4-40 0.202" 0.260" 0.316" 0.080" 0.095" 0.260" 0.436" Torx® /
Torx Plus®
0.203" 0.210"
  PFHVL-632-0-CN-U 6-32 0.218" 0.276" 0.234" 0.092" 0.000" 0.290" 0.484" Torx® /
Torx Plus®
0.219" 0.230"
  PFHVL-632-1-CN-U 6-32 0.218" 0.276" 0.359" 0.092" 0.120" 0.290" 0.484" Torx® /
Torx Plus®
0.219" 0.230"
  PFHVL-832-0-CN-U 8-32 0.251" 0.309" 0.259" 0.111" 0.000" 0.335" 0.555" Torx® /
Torx Plus®
0.252" 0.260"
  PFHVL-832-1-CN-U 8-32 0.251" 0.309" 0.371" 0.111" 0.106" 0.335" 0.555" Torx® /
Torx Plus®
0.252" 0.260"
Series  PFHVL-U  /  Metric Sizes
      • "A" (Shank) Max.-  0.92 mm
      • Min. Sheet Thickness-  0.92 mm
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Retainer Material-  Carbon Steel
      • Screw Material-  Heat-Treated Carbon Steel
      • Mil-Spec-  N/A
                            STANDARD FINISH
      • Retainer Finish-  Bright nickel over copper flash per ASTM B689
      • Screw Finish-  Bright nickel over copper flash per ASTM B689
Series PFHVL-U
Metric Sizes
Part
Number
Thread "C"
Max.
"E" "G" "H" "P" "T1"
Max.
"T2"
Nom.
Driver
Type
Hole
in Sheet
Min.
Distance
to Edge
  PFHVL-M3-0-CN-U M3 x 0.5 5.59
mm
6.95
mm
5.55
mm
2.03
mm
0.00
mm
6.69
mm
11.25
mm
Torx® /
Torx Plus®
5.50
mm
5.80
mm
  PFHVL-M3-1-CN-U M3 x 0.5 5.59
mm
6.95
mm
7.56
mm
2.03
mm
1.90
mm
6.69
mm
11.25
mm
Torx® /
Torx Plus®
5.50
mm
5.80
mm
  PFHVL-M3.5-0-CN-U M3.5 x 0.6 5.98
mm
7.45
mm
6.01
mm
2.34
mm
0.00
mm
7.45
mm
12.47
mm
Torx® /
Torx Plus®
6.00
mm
6.30
mm
  PFHVL-M3.5-1-CN-U M3.5 x 0.6 5.98
mm
7.45
mm
8.42
mm
2.34
mm
2.30
mm
7.45
mm
12.47
mm
Torx® /
Torx Plus®
6.00
mm
6.30
mm
  PFHVL-M4-0-CN-U M4 x 0.7 6.38
mm
7.85
mm
6.59
mm
2.79
mm
0.00
mm
8.50
mm
14.10
mm
Torx® /
Torx Plus®
6.40
mm
6.70
mm
  PFHVL-M4-1-CN-U M4 x 0.7 6.38
mm
7.85
mm
9.39
mm
2.79
mm
2.70
mm
8.50
mm
14.10
mm
Torx® /
Torx Plus®
6.40
mm
6.70
mm
