Metric Slotted Shoulder Screws
6mm Diameter

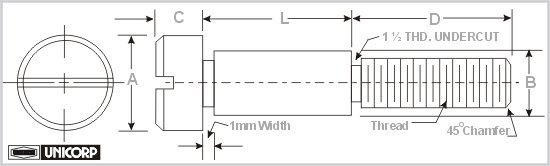

 *External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Applicable Tolerances
  Slotted / Threads		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Standard Shoulder Screws
 Metric Shoulder Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part No. A B C D L Thread
 MSCS236- 1 6 3 3 4 3 M3 x 0.5
 MSCS236- 2 6 3 3 4 4 M3 x 0.5
 MSCS236- 3 6 3 3 4 5 M3 x 0.5
 MSCS236- 4 6 3 3 4 6 M3 x 0.5
 MSCS-36- 5 6 3 3 4 7 M3 x 0.5
 MSCS236- 6 6 3 3 4 8 M3 x 0.5
 MSCS236- 7 6 3 3 4 9 M3 x 0.5
 MSCS236- 8 6 3 3 4 10 M3 x 0.5
 MSCS236- 9 6 3 3 4 11 M3 x 0.5
 MSCS236- 10 6 3 3 4 12 M3 x 0.5
 MSCS236- 11 6 3 3 4 13 M3 x 0.5
Applicable Tolerances
B C L
+.000  / - .026   ± .015       ± .015
Applicable Specifications
Stainless Steel Passivate Threads
QQ- S- 763, Class 303, Cond. A. (Non- Magnetic) Per Mil-F-14072-A
(EL) E 300 		Class 6G per handbook
H.28, Part 1

Slot Information
Thread Width Depth
M3 x 0.5 1.2 1.6
M3.5 x 0.6 1.2 1.6
M4 x 0.7 1.2 1.6
M5 x 0.8 1.6 2
M6 x 1 2 2.4
M8 x 1 2.4 2.8
Standard in Type 303 Stainless Steel. Other materials available on special order.
