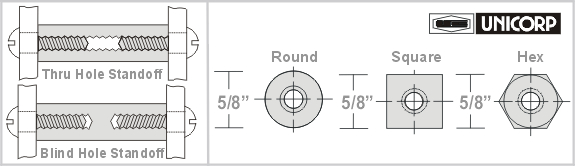

5/8" Standoffs (Threaded)

Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes

Conversion Chart
Metric Standoffs
American Standard Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
P1601 1/16 P1650 53/64 P1699 1- 19/32 P1748 2- 23/64 P1797 4 INCH
P1602 5/64 P1651 27/32 P1700 1- 39/64 P1749 2- 3/8 P1798 4- 1/8
P1603 3/32 P1652 55/64 P1701 1- 5/8 P1750 2- 25/64 P1799 4- 1/4
P1604 7/64 P1653 7/8 P1702 1- 41/64 P1751 2- 13/32 P1800 4-3/8
P1605 1/8 P1654 57/64 P1703 1- 21/32 P1752 2- 27/64 P1801 4- 1/2
P1606 9/64 P1655 29/32 P1704 1- 43/64 P1753 2- 7/16 P1802 4-5/8
P1607 5/32 P1656 59/64 P1705 1- 11/16 P1754 2- 29/64 P1803 4-3/4
P1608 11/64 P1657 15/16 P1706 1- 45/64 P1755 2- 15/32 P1804 4-7/8
P1609 3/16 P1658 61/64 P1707 1- 23/32 P1756 2- 31/64 P1805 5 INCH
P1610 13/64 P1659 31/32 P1708 1- 47/64 P1757 2- 1/2 P1806 5-1/8
P1611 7/32 P1660 63/64 P1709 1- 3/4 P1758 2- 33/64 P1807 5-1/4
P1612 15/64 P1661 1 INCH P1710 1- 49/64 P1759 2- 17/32 P1808 5-3/8
P1613 1/4 P1662 1- 1/64 P1711 1- 25/32 P1760 2- 35/64 P1809 5-1/2
P1614 17/64 P1663 1- 1/32 P1712 1- 51/64 P1761 2- 9/16 P1810 5-5/8
P1615 9/32 P1664 1- 3/64 P1713 1- 13/16 P1762 2- 37/64 P1811 5-3/4
P1616 19/64 P1665 1- 1/16 P1714 1- 53/64 P1763 2- 19/32 P1812 5-7/8
P1617 5/16 P1666 1- 5/64 P1715 1- 27/32 P1764 2- 39/64 P1813 6 INCH
P1618 21/64 P1667 1- 3/32 P1716 1- 55/64 P1765 2- 5/8 P1814 6-1/8
P1619 11/32 P1668 1- 7/64 P1717 1- 7/8 P1766 2- 41/64 P1815 6-1/4
P1620 23/64 P1669 1- 1/8 P1718 1- 57/64 P1767 2- 21/32 P1816 6-3/8
P1621 3/8 P1670 1- 9/64 P1719 1- 29/32 P1768 2- 43/64 P1817 6-1/2
P1622 25/64 P1671 1- 5/32 P1720 1- 59/64 P1769 2- 11/16 P1818 6-5/8
P1623 13/32 P1672 1- 11/64 P1721 1- 15/16 P1770 2- 45/64 P1819 6-3/4
P1624 27/64 P1673 1- 3/16 P1722 1- 61/64 P1771 2- 23/32 P1820 6-7/8
P1625 7/16 P1674 1- 13/64 P1723 1- 31/32 P1772 2- 47/64 P1821 7 INCH
P1626 29/64 P1675 1- 7/32 P1724 1- 63/64 P1773 2- 3/4 P1822 7-1/8
P1627 15/32 P1676 1- 15/64 P1725 2 INCH P1774 2- 49/64 P1823 7-1/4
P1628 31/64 P1677 1- 1/4 P1726 2- 1/64 P1775 2- 25/32 P1824 7-3/8
P1629 1/2 P1678 1- 17/64 P1727 2- 1/32 P1776 2- 51/64 P1825 7-1/2
P1630 33/64 P1679 1- 9/32 P1728 2- 3/64 P1777 2- 13/16 P1826 7-5/8
P1631 17/32 P1680 1- 19/64 P1729 2- 1/16 P1778 2- 53/64 P1827 7-3/4
P1632 35/64 P1681 1- 5/16 P1730 2- 5/64 P1779 2- 27/32 P1828 7-7/8
P1633 9/16 P1682 1- 21/64 P1731 2- 3/32 P1780 2- 55/64 P1829 8 INCH
P1634 37/64 P1683 1- 11/32 P1732 2- 7/64 P1781 2- 7/8 P1830 8-1/8
P1635 19/32 P1684 1- 23/64 P1733 2- 1/8 P1782 2- 57/64 P1831 8-1/4
P1636 39/64 P1685 1- 3/8 P1734 2- 9/64 P1783 2- 29/32 P1832 8-3/8
P1637 5/8 P1686 1- 25/64 P1735 2- 5/32 P1784 2- 59/64 P1833 8-1/2
P1638 41/64 P1687 1- 13/32 P1736 2- 11/64 P1785 2- 15/16 P1834 8-5/8
P1639 21/32 P1688 1- 27/64 P1737 2- 3/16 P1786 2- 61/64 P1835 8-3/4
P1640 43/64 P1689 1- 7/16 P1738 2- 13/64 P1787 2- 31/32 P1836 8-7/8
P1641 11/16 P1690 1- 29/64 P1739 2- 7/32 P1788 2- 63/64 P1837 9 INCH
P1642 45/64 P1691 1- 15/32 P1740 2- 15/64 P1789 3 INCH P1838 9-1/8
P1643 23/32 P1692 1- 31/64 P1741 2- 1/4 P1790 3-1/8 P1839 9-1/4
P1644 47/64 P1693 1- 1/2 P1742 2- 17/64 P1791 3-1/4 P1840 9-3/8
P1645 3/4 P1694 1- 33/64 P1743 2- 9/32 P1792 3-3/8 P1841 9-1/2
P1646 49/64 P1695 1- 17/32 P1744 2- 19/64 P1793 3-1/2 P1842 9-5/8
P1647 25/32 P1696 1- 35/64 P1745 2- 5/16 P1794 3-5/8 P1843 9-3/4
P1648 51/64 P1697 1- 9/16 P1746 2- 21/64 P1795 3-3/4 P1844 9-7/8
P1649 13/16 P1698 1- 37/64 P1747 2- 11/32 P1796 3-7/8 P1845 10 INCH
