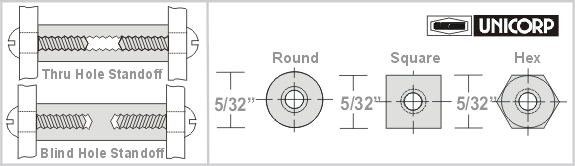

5/32" Standoffs (Threaded)
Back To Standoffs Page
 *Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes

Conversion Chart
Metric Standoffs
American Standard Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
P2820 1/16 P2858 21/32 P2896 1- 1/4 P2934 1- 27/32 P2972 2- 7/16
P2821 5/64 P2859 43/64 P2897 1- 17/64 P2935 1- 55/64 P2973 2- 29/64
P2822 3/32 P2860 11/16 P2898 1- 9/32 P2936 1- 7/8 P2974 2- 15/32
P2823 7/64 P2861 45/64 P2899 1- 19/64 P2937 1- 57/64 P2975 2- 31/64
P2824 1/8 P2862 23/32 P2900 1- 5/16 P2938 1- 29/32 P2976 2- 1/2
P2825 9/64 P2863 47/64 P2901 1- 21/64 P2939 1- 59/64 P2977 2- 33/64
P2826 5/32 P2864 3/4 P2902 1- 11/32 P2940 1- 15/16 P2978 2- 17/32
P2827 11/64 P2865 49/64 P2903 1- 23/64 P2941 1- 61/64 P2979 2- 35/64
P2828 3/16 P2866 25/32 P2904 1- 3/8 P2942 1- 31/32 P2980 2- 9/16
P2829 13/64 P2867 51/64 P2905 1- 25/64 P2943 1- 63/64 P2981 2- 37/64
P2830 7/32 P2868 13/16 P2906 1- 13/32 P2944 2 INCH P2982 2- 19/32
P2831 15/64 P2869 53/64 P2907 1- 27/64 P2945 2- 1/64 P2983 2- 39/64
P2832 1/4 P2870 27/32 P2908 1- 7/16 P2946 2- 1/32 P2984 2- 5/8
P2833 17/64 P2871 55/64 P2909 1- 29/64 P2947 2- 3/64 P2985 2- 41/64
P2834 9/32 P2872 7/8 P2910 1- 15/32 P2948 2- 1/16 P2986 2- 21/32
P2835 19/64 P2873 57/64 P2911 1- 31/64 P2949 2- 5/64 P2987 2- 43/64
P2836 5/16 P2874 29/32 P2912 1- 1/2 P2950 2- 3/32 P2988 2- 11/16
P2837 21/64 P2875 59/64 P2913 1- 33/64 P2951 2- 7/64 P2989 2- 45/64
P2838 11/32 P2876 15/16 P2914 1- 17/32 P2952 2- 1/8 P2990 2- 23/32
P2839 23/64 P2877 61/64 P2915 1- 35/64 P2953 2- 9/64 P2991 2- 47/64
P2840 3/8 P2878 31/32 P2916 1- 9/16 P2954 2- 5/32 P2992 2- 3/4
P2841 25/64 P2879 63/64 P2917 1- 37/64 P2955 2- 11/64 P2993 2- 49/64
P2842 13/32 P2880 1 INCH P2918 1- 19/32 P2956 2- 3/16 P2994 2- 25/32
P2843 27/64 P2881 1- 1/64 P2919 1- 39/64 P2957 2- 13/64 P2995 2- 51/64
P2844 7/16 P2882 1- 1/32 P2920 1- 5/8 P2958 2- 7/32 P2996 2- 13/16
P2845 29/64 P2883 1- 3/64 P2921 1- 41/64 P2959 2- 15/64 P2997 2- 53/64
P2846 15/32 P2884 1- 1/16 P2922 1- 21/32 P2960 2- 1/4 P2998 2- 27/32
P2847 31/64 P2885 1- 5/64 P2923 1- 43/64 P2961 2- 17/64 P2999 2- 55/64
P2848 1/2 P2886 1- 3/32 P2924 1- 11/16 P2962 2- 9/32 P3000 2- 7/8
P2849 33/64 P2887 1- 7/64 P2925 1- 45/64 P2963 2- 19/64 P3001 2- 57/64
P2850 17/32 P2888 1- 1/8 P2926 1- 23/32 P2964 2- 5/16 P3002 2- 29/32
P2851 35/64 P2889 1- 9/64 P2927 1- 47/64 P2965 2- 21/64 P3003 2- 59/64
P2852 9/16 P2890 1- 5/32 P2928 1- 3/4 P2966 2- 11/32 P3004 2- 15/16
P2853 37/64 P2891 1- 11/64 P2929 1- 49/64 P2967 2- 23/64 P3005 2- 61/64
P2854 19/32 P2892 1- 3/16 P2930 1- 25/32 P2968 2- 3/8 P3006 2- 31/32
P2855 39/64 P2893 1- 13/64 P2931 1- 51/64 P2969 2- 25/64 P3007 2- 63/64
P2856 5/8 P2894 1- 7/32 P2932 1- 13/16 P2970 2- 13/32 P3008 3 INCH
P2857 41/64 P2895 1- 15/64 P2933 1- 53/64 P2971 2- 27/64
