5/16" Male-Male Standoffs
Back To Male-Male Standoffs Page

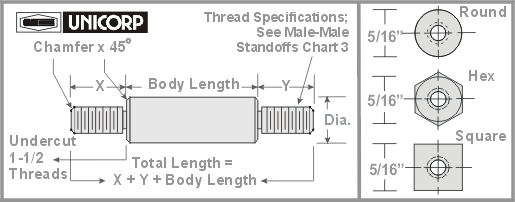

*External Thread has a 45°
Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit. |
|
|
CHOOSE and write down your PART NUMBER
then Go to
 Skip Step 1 |
|
Part Number |
B
Body
Length |
D
Diameter |
Thread
X |
Thread
Y |
Part
Number |
B
Body
Length |
D
Diameter |
Thread
X |
Thread
Y |
|
|
MM1510 |
.125 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1555 |
.812 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1511 |
.140 |
.312 |
MM1556 |
.828 |
.312 |
|
MM1512 |
.156 |
.312 |
MM1557 |
.843 |
.312 |
|
MM1513 |
.171 |
.312 |
MM1558 |
.859 |
.312 |
|
MM1514 |
.187 |
.312 |
MM1559 |
.875 |
.312 |
|
|
|
MM1515 |
.203 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1560 |
.890 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1516 |
.218 |
.312 |
MM1561 |
.906 |
.312 |
|
MM1517 |
.234 |
.312 |
MM1562 |
.921 |
.312 |
|
MM1518 |
.250 |
.312 |
MM1563 |
.937 |
.312 |
|
MM1519 |
.265 |
.312 |
MM1564 |
.953 |
.312 |
|
|
|
MM1520 |
.281 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1565 |
.968 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1521 |
.296 |
.312 |
MM1566 |
.984 |
.312 |
|
MM1522 |
.312 |
.312 |
MM1567 |
1.000 |
.312 |
|
MM1523 |
.328 |
.312 |
MM1568 |
1.062 |
.312 |
|
MM1524 |
.343 |
.312 |
MM1569 |
1.125 |
.312 |
|
|
|
MM1525 |
.359 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1570 |
1.187 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1526 |
.375 |
.312 |
MM1571 |
1.250 |
.312 |
|
MM1527 |
.390 |
.312 |
MM1572 |
1.312 |
.312 |
|
MM1528 |
.406 |
.312 |
MM1573 |
1.375 |
.312 |
|
MM1529 |
.421 |
.312 |
MM1574 |
1.437 |
.312 |
|
|
|
|
|
MM1530 |
.437 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1575 |
1.500 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1531 |
.453 |
.312 |
MM1576 |
1.562 |
.312 |
|
MM1532 |
.469 |
.312 |
MM1577 |
1.625 |
.312 |
|
MM1533 |
.484 |
.312 |
MM1578 |
1.687 |
.312 |
|
MM1534 |
.500 |
.312 |
MM1579 |
1.750 |
.312 |
|
|
|
MM1535 |
.515 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1580 |
1.812 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1536 |
.531 |
.312 |
MM1581 |
1.875 |
.312 |
|
MM1537 |
.546 |
.312 |
MM1582 |
1.937 |
.312 |
|
MM1538 |
.562 |
.312 |
MM1583 |
2.000 |
.312 |
|
MM1539 |
.578 |
.312 |
MM1584 |
2.062 |
.312 |
|
|
|
MM1540 |
.593 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1585 |
2.125 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1541 |
.609 |
.312 |
MM1586 |
2.187 |
.312 |
|
MM1542 |
.625 |
.312 |
MM1587 |
2.250 |
.312 |
|
MM1543 |
.640 |
.312 |
MM1588 |
2.312 |
.312 |
|
MM1544 |
.656 |
.312 |
MM1589 |
2.375 |
.312 |
|
|
|
MM1545 |
.671 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1590 |
2.437 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1546 |
.687 |
.312 |
MM1591 |
2.500 |
.312 |
|
MM1547 |
.703 |
.312 |
MM1592 |
2.562 |
.312 |
|
MM1548 |
.718 |
.312 |
MM1593 |
2.625 |
.312 |
|
MM1549 |
.734 |
.312 |
MM1594 |
2.687 |
.312 |
|
|
|
MM1550 |
.750 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1595 |
2.750 |
.312 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1551 |
.765 |
.312 |
MM1596 |
2.812 |
.312 |
|
MM1552 |
.781 |
.312 |
MM1597 |
2.875 |
.312 |
|
MM1553 |
.787 |
.312 |
MM1598 |
2.937 |
.312 |
|
MM1554 |
.796 |
.312 |
MM1599 |
3.000 |
.312 |
|
Thread Chart for Male-Male Standoffs Part Number
|
|
|
Thread Size
|
Thread Code
& Thread Length |
|
|
4-
40 |
440
- 1 |
.187 |
| 4-
40 |
440
- 2 |
.250 |
|
6-
32 |
632
- 1 |
.250 |
| 6-
32 |
632
- 2 |
.375 |
|
8-
32
|
832 - 1 |
.375 |
| 8-
32 |
832
- 2 |
.437 |
|
10-
24 |
1024
- 1 |
.375 |
|
10-
24
|
1024 - 2 |
.500 |
|
10-
32
|
1032 - 1 |
.375 |
|
10-
32
|
1032 - 2 |
.500 |
|
1/4- 20 |
1420 - 1 |
.500 |
|
1/4- 20 |
1420 - 2 |
.625 |
|
1/4- 28 |
1428 - 1 |
.500 |
|
1/4- 28 |
1428 - 2 |
.625 |
|
*Mix and Match Different Threads and Lengths For Each Part. |
Tolerances:
For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length- Length up to 6"
± .005 / over 6" ±
.010
Thread Length Tolerance is
± .005
Tolerances: For Nylon & Delrin®
Body Length- For all Lengths the Tolerance is ±
.010
Thread Length Tolerance is
± .010
Diameter: Standard commercial bar stock tolerances.
* No
undercut Nylon & Delrin® |
 |
|
