3/8" Swage Spacers (Unthreaded / Clear Hole)
Back To Swage Standoffs Page

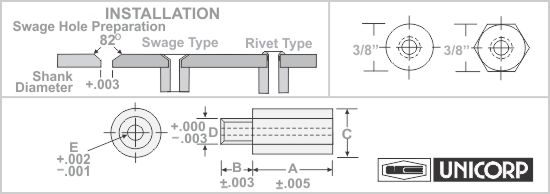

*Slightly Chamfered to Permit Smooth Entry / Fit.
|
|
|
|
3/8" - Major Diameter x .209 Shank x .171 Inside Diameter |
CHOOSE and write down your PART NUMBER
then Go to
 Skip Step 1 |
|
See Swage Tooling Below
/ See
Shank Length |
|
Part # |
A |
B |
C |
D |
E |
Part # |
A |
B |
C |
D |
E |
|
|
SU431 |
.125 |
* |
.375 |
.209 |
.171 |
SU442 |
.469 |
* |
.375 |
.209 |
.171 |
|
|
SU432 |
.156 |
* |
.375 |
.209 |
.171 |
SU443 |
.500 |
* |
.375 |
.209 |
.171 |
|
|
SU433 |
.187 |
* |
.375 |
.209 |
.171 |
SU444 |
.562 |
* |
.375 |
.209 |
.171 |
|
|
SU434 |
.218 |
* |
.375 |
.209 |
.171 |
SU445 |
.625 |
* |
.375 |
.209 |
.171 |
|
|
SU435 |
.250 |
* |
.375 |
.209 |
.171 |
SU446 |
.687 |
* |
.375 |
.209 |
.171 |
|
|
SU436 |
.281 |
* |
.375 |
.209 |
.171 |
SU447 |
.750 |
* |
.375 |
.209 |
.171 |
|
|
SU437 |
.312 |
* |
.375 |
.209 |
.171 |
SU448 |
.812 |
* |
.375 |
.209 |
.171 |
|
|
SU438 |
.343 |
* |
.375 |
.209 |
.171 |
SU449 |
.875 |
* |
.375 |
.209 |
.171 |
|
|
SU439 |
.375 |
* |
.375 |
.209 |
.171 |
SU450 |
.937 |
* |
.375 |
.209 |
.171 |
|
|
SU440 |
.406 |
* |
.375 |
.209 |
.171 |
SU451 |
1.000 |
* |
.375 |
.209 |
.171 |
|
|
SU441 |
.437 |
* |
.375 |
.209 |
.171 |
|
|
|
|
|
|
|
|
Swage
Tooling For: |
Punch |
Round Anvil |
Hex Anvil |
Length |
Unicorp
Part Number |
3/8"
Diameter |
UP5 |
AN300 |
AN600 |
.125" -
.218" |
SU431 -
SU434 |
|
UP5 |
AN310 |
AN610 |
.250" -
.469" |
SU435 -
SU442 |
|
UP5 |
AN320 |
AN620 |
.500" -
.687" |
SU443 - SU446 |
|
UP5 |
AN330 |
AN630 |
.750" -
1" |
SU447 - SU451 |
|

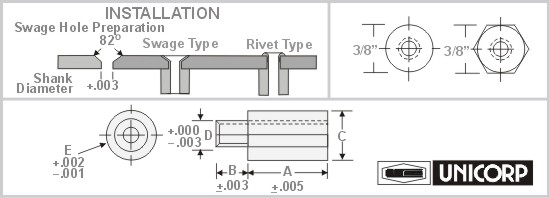

3/8" - Major Diameter x .234 Shank x .194 Inside Diameter |
|
See Swage Tooling Below
/ See
Shank Length |
|
Part # |
A |
B |
C |
D |
E |
Part # |
A |
B |
C |
D |
E |
|
|
SU461 |
.125 |
* |
.375 |
.234 |
.194 |
SU472 |
.469 |
* |
.375 |
.234 |
.194 |
|
|
SU462 |
.156 |
* |
.375 |
.234 |
.194 |
SU473 |
.500 |
* |
.375 |
.234 |
.194 |
|
|
SU463 |
.187 |
* |
.375 |
.234 |
.194 |
SU474 |
.562 |
* |
.375 |
.234 |
.194 |
|
|
SU464 |
.218 |
* |
.375 |
.234 |
.194 |
SU475 |
.625 |
* |
.375 |
.234 |
.194 |
|
|
SU465 |
.250 |
* |
.375 |
.234 |
.194 |
SU476 |
.687 |
* |
.375 |
.234 |
.194 |
|
|
SU466 |
.281 |
* |
.375 |
.234 |
.194 |
SU477 |
.750 |
* |
.375 |
.234 |
.194 |
|
|
SU467 |
.312 |
* |
.375 |
.234 |
.194 |
SU478 |
.812 |
* |
.375 |
.234 |
.194 |
|
|
SU468 |
.343 |
* |
.375 |
.234 |
.194 |
SU479 |
.875 |
* |
.375 |
.234 |
.194 |
|
|
SU469 |
.375 |
* |
.375 |
.234 |
.194 |
SU480 |
.937 |
* |
.375 |
.234 |
.194 |
|
|
SU470 |
.406 |
* |
.375 |
.234 |
.194 |
SU481 |
1.000 |
* |
.375 |
.234 |
.194 |
|
|
SU471 |
.437 |
* |
.375 |
.234 |
.194 |
|
|
|
|
|
|
|
|
Swage
Tooling
For: |
Punch |
Round Anvil |
Hex Anvil |
Length |
Unicorp
Part Number |
3/8"
Diameter |
UP5 |
AN300 |
AN600 |
.125" -
.218" |
SU461 -
SU464 |
|
UP5 |
AN310 |
AN610 |
.250" -
.469" |
SU465 - SU472 |
|
UP5 |
AN320 |
AN620 |
.500" -
.687" |
SU473 -
SU476 |
|
UP5 |
AN330 |
AN630 |
.750" -
1" |
SU477 - SU481 |
 |
|
