3/8" Male-Female Standoffs

Back To Male-Female Standoffs Page

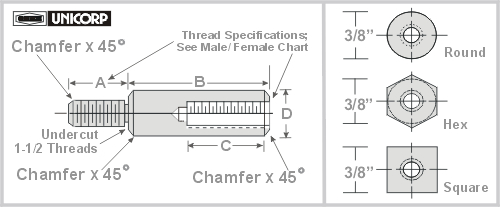

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Metric Male-Female Standoffs
 Am. Standard Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part No. B
Length		 D
Dia		 Part No. B
Length		 D
Dia		 Part No. B
Length		 D
Dia		 Part
No.		 B
Length		 D
Dia		 Part No. B
Length		 D
Dia
1701 .250 .375 1741 1.500 .375 1781 2.750 .375 1821 4.000 .375 1861 6.500 .375
1702 .281 .375 1742 1.531 .375 1782 2.781 .375 1822 4.062 .375 1862 6.562 .375
1703 .312 .375 1743 1.562 .375 1783 2.812 .375 1823 4.125 .375 1863 6.625 .375
1704 .343 .375 1744 1.593 .375 1784 2.843 .375 1824 4.187 .375 1864 6.687 .375
1705 .375 .375 1745 1.625 .375 1785 2.875 .375 1825 4.250 .375 1865 6.750 .375
1706 .406 .375 1746 1.656 .375 1786 2.906 .375 1826 4.312 .375 1866 6.812 .375
1707 .437 .375 1747 1.687 .375 1787 2.937 .375 1827 4.375 .375 1867 6.875 .375
1708 .469 .375 1748 1.718 .375 1788 2.969 .375 1828 4.437 .375 1868 6.937 .375
1709 500 .375 1749 1.750 .375 1789 3.000 .375 1829 4.500 .375 1869 7.000 .375
1710 .531 .375 1750 1.781 .375 1790 3.031 .375 1830 4.562 .375 1870 7.062 .375
1711 .562 .375 1751 1.812 .375 1791 3.062 .375 1831 4.625 .375 1871 7.125 .375
1712 .593 .375 1752 1.843 .375 1792 3.093 .375 1832 4.687 .375 1872 7.187 .375
1713 .625 .375 1753 1.875 .375 1793 3.125 .375 1833 4.750 .375 1873 7.250 .375
1714 .656 .375 1754 1.906 .375 1794 3.156 .375 1834 4.812 .375 1874 7.312 .375
1715 .687 .375 1755 1.937 .375 1795 3.187 .375 1835 4.875 .375 1875 7.375 .375
1716 .718 .375 1756 1.969 .375 1796 3.218 .375 1836 4.937 .375 1876 7.437 .375
1717 .750 .375 1757 2.000 .375 1797 3.250 .375 1837 5.000 .375 1877 7.500 .375
1718 .781 .375 1758 2.031 .375 1798 3.281 .375 1838 5.062 .375 1878 7.562 .375
1719 .812 .375 1759 2.062 .375 1799 3.312 .375 1839 5.125 .375 1879 7.625 .375
1720 .843 .375 1760 2.093 .375 1800 3.343 .375 1840 5.187 .375 1880 7.687 .375
Part No. B
Length		 D
Dia		 Part No. B
Length		 D
Dia		 Part No. B
Length		 D
Dia		 Part
No.		 B
Length		 D
Dia		 Part No. B
Length		 D
Dia
1721 .875 .375 1761 2.125 .375 1801 3.375 .375 1841 5.250 .375 1881 7.750 .375
1722 .906 .375 1762 2.156 .375 1802 3.406 .375 1842 5.312 .375 1882 7.812 .375
1723 .937 .375 1763 2.187 .375 1803 3.437 .375 1843 5.375 .375 1883 7.875 .375
1724 .969 .375 1764 2.218 .375 1804 3.469 .375 1844 5.437 .375 1884 7.937 .375
1725 1.000 .375 1765 2.250 .375 1805 3.500 .375 1845 5.500 .375 1885 8.000 .375
1726 1.031 .375 1766 2.281 .375 1806 3.531 .375 1846 5.562

.375

 1886 8.062 .375
1727 1.062 .375 1767 2.312 .375 1807 3.562 .375 1847 5.625 .375 1887 8.125 .375
1728 1.093 .375 1768 2.343 .375 1808 3.593 .375 1848 5.687 .375 1888 8.187 .375
1729 1.125 .375 1769 2.375 .375 1809 3.625 .375 1849 5.750 .375 1889 8.250 .375
1730 1.156 .375 1770 2.406 .375 1810 3.656 .375 1850 5.812 .375 1890 8.312 .375
1731 1.187 .375 1771 2.437 .375 1811 3.687 .375 1851 5.875 .375 1891 8.375 .375
1732 1.218 .375 1772 2.469 .375 1812 3.718 .375 1852 5.937 .375 1892 8.437 .375
1733 1.250 .375 1773 2.500 .375 1813 3.750 .375 1853 6.000 .375 1893 8.500 .375
1734 1.281 .375 1774 2.531 .375 1814 3.781 .375 1854 6.062 .375 1894 8.562 .375
1735 1.312 .375 1775 2.562 .375 1815 3.812 .375 1855 6.125 .375 1895 8.625 .375
1736 1.343 .375 1776 2.593 .375 1816 3.843 .375 1856 6.187 .375 1896 8.687 .375
1737 1.375 .375 1777 2.625 .375 1817 3.875 .375 1857 6.250 .375 1897 8.750 .375
1738 1.406 .375 1778 2.656 .375 1818 3.906 .375 1858 6.312 .375 1898 8.812 .375
1739 1.437 .375 1779 2.687 .375 1819 3.937 .375 1859 6.375 .375 1899 8.875 .375
1740 1.469 .375 1780 2.718 .375 1820 3.969 .375 1860 6.437 .375 1900 8.937 .375
                      1901 9.000 .375
TOLERANCES:
B-  Length up to 4"± .005
4" to 6" ± .008
Over 6" ± .010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial
bar stock tolerances.
*No undercut Nylon & Delrin®
