3/16" Male-Female Standoffs

Back To Male-Female Standoffs Page

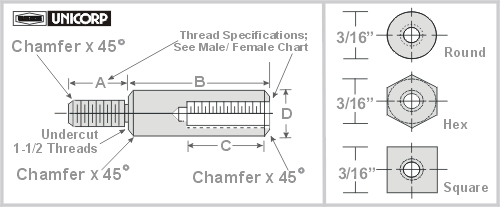

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Metric Male-Female Standoffs
 Am. Standard Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Length		 D
Dia.		 Part Number B
Length		 D
Dia.		 Part Number B
Length		 D
Dia.		 Part Number B
Length		 D
Dia.
1301 .125 .187 1328 .969 .187 1355 1.812 .187 1382 2.656 .187
1302 .156 .187 1329 1.000 .187 1356 1.843 .187 1383 2.687 .187
1303 .187 .187 1330 1.031 .187 1357 1.875 .187 1384 2.718 .187
1304 .218 .187 1331 1.062 .187 1358 1.906 .187 1385 2.750 .187
1305 .250 .187 1332 1.093 .187 1359 1.937 .187 1386 2.781 .187
1306 .281 .187 1333 1.125 .187 1360 1.969 .187 1387 2.812 .187
1307 .312 .187 1334 1.156 .187 1361 2.000 .187 1388 2.843 .187
1308 .343 .187 1335 1.187 .187 1362 2.031 .187 1389 2.875 .187
1309 .375 .187 1336 1.218 .187 1363 2.062 .187 1390 2.906 .187
1310 .406 .187 1337 1.250 .187 1364 2.093 .187 1391 2.937 .187
1311 .437 .187 1338 1.281 .187 1365 2.125 .187 1392 2.969 .187
1312 .469 .187 1339 1.312 .187 1366 2.156 .187 1393 3.000 .187
1313 .500 .187 1340 1.343 .187 1367 2.187 .187 1394 3.062 .187
1314 .531 .187 1341 1.375 .187 1368 2.218 .187 1395 3.125 .187
1315 .562 .187 1342 1.406 .187 1369 2.250 .187 1396 3.187 .187
Part Number B
Length		 D
Dia.		 Part Number B
Length		 D
Dia.		 Part Number B
Length		 D
Dia.		 Part Number B
Length		 D
Dia.
1316 .593 .187 1343 1.437 .187 1370 2.281 .187 1397 3.250 .187
1317 .625 .187 1344 1.469 .187 1371 2.312 .187 1398 3.312 .187
1318 .656 .187 1345 1.500 .187 1372 2.343 .187 1399 3.375 .187
1319 .687 .187 1346 1.531 .187 1373 2.375 .187 1400 3.437 .187
1320 .718 .187 1347 1.562 .187 1374 2.406 .187 1401 3.500 .187
1321 .750 .187 1348 1.593 .187 1375 2.437 .187 1402 3.562 .187
1322 .781 .187 1349 1.625 .187 1376 2.469 .187 1403 3.625 .187
1323 .812 .187 1350 1.656 .187 1377 2.500 .187 1404 3.687 .187
1324 .843 .187 1351 1.687 .187 1378 2.531 .187 1405 3.750 .187
1325 .875 .187 1352 1.718 .187 1379 2.562 .187 1406 3.812 .187
1326 .906 .187 1353 1.750 .187 1380 2.593 .187 1407 3.875 .187
1327 .937 .187 1354 1.781 .187 1381 2.625 .187 1408 3.937 .187
                1409 4.000 .187
TOLERANCES:
B-  Length up to 4" ± .005
4" to 6" ± .008
Over 6" ± .010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial
bar stock tolerances.
* No undercut Nylon & Delrin®
