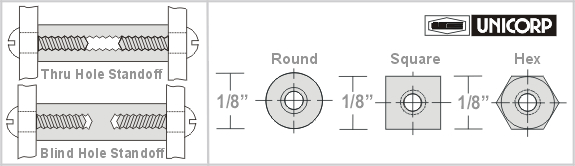

1/8" Standoffs (Threaded)
Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes

Conversion Chart
Metric Standoffs
American Standard Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
P101 1/16 P139 21/32 P177 1- 1/4 P215 1- 27/32 P253 2- 7/16
P102 5/64 P140 43/64 P178 1- 17/64 P216 1- 55/64 P254 2- 29/64
P103 3/32 P141 11/16 P179 1- 9/32 P217 1- 7/8 P255 2- 15/32
P104 7/64 P142 45/64 P180 1- 19/64 P218 1- 57/64 P256 2- 31/64
P105 1/8 P143 23/32 P181 1- 5/16 P219 1- 29/32 P257 2- 1/2
P106 9/64 P144 47/64 P182 1- 21/64 P220 1- 59/64 P258 2- 33/64
P107 5/32 P145 3/4 P183 1- 11/32 P221 1- 15/16 P259 2- 17/32
P108 11/64 P146 49/64 P184 1- 23/64 P222 1- 61/64 P260 2- 35/64
P109 3/16 P147 25/32 P185 1- 3/8 P223 1- 31/32 P261 2- 9/16
P110 13/64 P148 51/64 P186 1- 25/64 P224 1- 63/64 P262 2- 37/64
P111 7/32 P149 13/16 P187 1- 13/32 P225 2 INCH P263 2- 19/32
P112 15/64 P150 53/64 P188 1- 27/64 P226 2- 1/64 P264 2- 39/64
P113 1/4 P151 27/32 P189 1- 7/16 P227 2- 1/32 P265 2- 5/8
P114 17/64 P152 55/64 P190 1- 29/64 P228 2- 3/64 P266 2- 41/64
P115 9/32 P153 7/8 P191 1- 15/32 P229 2- 1/16 P267 2- 21/32
P116 19/64 P154 57/64 P192 1- 31/64 P230 2- 5/64 P268 2- 43/64
P117 5/16 P155 29/32 P193 1- 1/2 P231 2- 3/32 P269 2- 11/16
P118 21/64 P156 59/64 P194 1- 33/64 P232 2- 7/64 P270 2- 45/64
P119 11/32 P157 15/16 P195 1- 17/32 P233 2- 1/8 P271 2- 23/32
P120 23/64 P158 61/64 P196 1- 35/64 P234 2- 9/64 P272 2- 47/64
P121 3/8 P159 31/32 P197 1- 9/16 P235 2- 5/32 P273 2- 3/4
P122 25/64 P160 63/64 P198 1- 37/64 P236 2- 11/64 P274 2- 49/64
P123 13/32 P161 1 INCH P199 1- 19/32 P237 2- 3/16 P275 2- 25/32
P124 27/64 P162 1- 1/64 P200 1- 39/64 P238 2- 13/64 P276 2- 51/64
P125 7/16 P163 1- 1/32 P201 1- 5/8 P239 2- 7/32 P277 2- 13/16
P126 29/64 P164 1- 3/64 P202 1- 41/64 P240 2- 15/64 P278 2- 53/64
P127 15/32 P165 1- 1/16 P203 1- 21/32 P241 2- 1/4 P279 2- 27/32
P128 31/64 P166 1- 5/64 P204 1- 43/64 P242 2- 17/64 P280 2- 55/64
P129 1/2 P167 1- 3/32 P205 1- 11/16 P243 2- 9/32 P2801 2- 7/8
P130 33/64 P168 1- 7/64 P206 1- 45/64 P244 2- 19/64 P2802 2- 57/64
P131 17/32 P169 1- 1/8 P207 1- 23/32 P245 2- 5/16 P2803 2- 29/32
P132 35/64 P170 1- 9/64 P208 1- 47/64 P246 2- 21/64 P2804 2- 59/64
P133 9/16 P171 1- 5/32 P209 1- 3/4 P247 2- 11/32 P2805 2- 15/16
P134 37/64 P172 1- 11/64 P210 1- 49/64 P248 2- 23/64 P2806 2- 61/64
P135 19/32 P173 1- 3/16 P211 1- 25/32 P249 2- 3/8 P2807 2- 31/32
P136 39/64 P174 1- 13/64 P212 1- 51/64 P250 2- 25/64 P2808 2- 63/64
P137 5/8 P175 1- 7/32 P213 1- 13/16 P251 2- 13/32 P2809 3 INCH
P138 41/64 P176 1- 15/64 P214 1- 53/64 P252 2- 27/64
