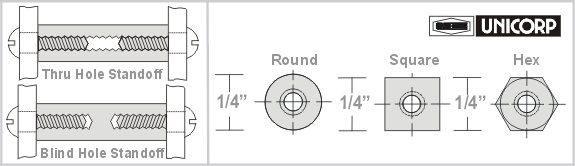

1/4" Standoffs (Threaded)

Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes

Conversion Chart
Metric Standoffs
American Standard Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
P501 1/16 P550 53/64 P599 1- 19/32 P648 2- 23/64 P697 4 INCH
P502 5/64 P551 27/32 P600 1- 39/64 P649 2- 3/8 P698 4- 1/8
P503 3/32 P552 55/64 P601 1- 5/8 P650 2- 25/64 P699 4- 1/4
P504 7/64 P553 7/8 P602 1- 41/64 P651 2- 13/32 P700 4-3/8
P505 1/8 P554 57/64 P603 1- 21/32 P652 2- 27/64 P701 4- 1/2
P506 9/64 P555 29/32 P604 1- 43/64 P653 2- 7/16 P702 4-5/8
P507 5/32 P556 59/64 P605 1- 11/16 P654 2- 29/64 P703 4-3/4
P508 11/64 P557 15/16 P606 1- 45/64 P655 2- 15/32 P704 4-7/8
P509 3/16 P558 61/64 P607 1- 23/32 P656 2- 31/64 P705 5 INCH
P510 13/64 P559 31/32 P608 1- 47/64 P657 2- 1/2 P706 5-1/8
P511 7/32 P560 63/64 P609 1- 3/4 P658 2- 33/64 P707 5-1/4
P512 15/64 P561 1 INCH P610 1- 49/64 P659 2- 17/32 P708 5-3/8
P513 1/4 P562 1- 1/64 P611 1- 25/32 P660 2- 35/64 P709 5-1/2
P514 17/64 P563 1- 1/32 P612 1- 51/64 P661 2- 9/16 P710 5-5/8
P515 9/32 P564 1- 3/64 P613 1- 13/16 P662 2- 37/64 P711 5-3/4
P516 19/64 P565 1- 1/16 P614 1- 53/64 P663 2- 19/32 P712 5-7/8
P517 5/16 P566 1- 5/64 P615 1- 27/32 P664 2- 39/64 P713 6 INCH
P518 21/64 P567 1- 3/32 P616 1- 55/64 P665 2- 5/8 P714 6-1/8
P519 11/32 P568 1- 7/64 P617 1- 7/8 P666 2- 41/64 P715 6-1/4
P520 23/64 P569 1- 1/8 P618 1- 57/64 P667 2- 21/32 P716 6-3/8
P521 3/8 P570 1- 9/64 P619 1- 29/32 P668 2- 43/64 P717 6-1/2
P522 25/64 P571 1- 5/32 P620 1- 59/64 P669 2- 11/16 P718 6-5/8
P523 13/32 P572 1- 11/64 P621 1- 15/16 P670 2- 45/64 P719 6-3/4
P524 27/64 P573 1- 3/16 P622 1- 61/64 P671 2- 23/32 P720 6-7/8
P525 7/16 P574 1- 13/64 P623 1- 31/32 P672 2- 47/64 P721 7 INCH
P526 29/64 P575 1- 7/32 P624 1- 63/64 P673 2- 3/4 P722 7-1/8
P527 15/32 P576 1- 15/64 P625 2 INCH P674 2- 49/64 P723 7-1/4
P528 31/64 P577 1- 1/4 P626 2- 1/64 P675 2- 25/32 P724 7-3/8
P529 1/2 P578 1- 17/64 P627 2- 1/32 P676 2- 51/64 P725 7-1/2
P530 33/64 P579 1- 9/32 P628 2- 3/64 P677 2- 13/16 P726 7-5/8
P531 17/32 P580 1- 19/64 P629 2- 1/16 P678 2- 53/64 P727 7-3/4
P532 35/64 P581 1- 5/16 P630 2- 5/64 P679 2- 27/32 P728 7-7/8
P533 9/16 P582 1- 21/64 P631 2- 3/32 P680 2- 55/64 P729 8 INCH
P534 37/64 P583 1- 11/32 P632 2- 7/64 P681 2- 7/8 P730 8-1/8
P535 19/32 P584 1- 23/64 P633 2- 1/8 P682 2- 57/64 P731 8-1/4
P536 39/64 P585 1- 3/8 P634 2- 9/64 P683 2- 29/32 P732 8-3/8
P537 5/8 P586 1- 25/64 P635 2- 5/32 P684 2- 59/64 P733 8-1/2
P538 41/64 P587 1- 13/32 P636 2- 11/64 P685 2- 15/16 P734 8-5/8
P539 21/32 P588 1- 27/64 P637 2- 3/16 P686 2- 61/64 P735 8-3/4
P540 43/64 P589 1- 7/16 P638 2- 13/64 P687 2- 31/32 P736 8-7/8
P541 11/16 P590 1- 29/64 P639 2- 7/32 P688 2- 63/64 P737 9 INCH
P542 45/64 P591 1- 15/32 P640 2- 15/64 P689 3 INCH P738 9-1/8
P543 23/32 P592 1- 31/64 P641 2- 1/4 P690 3-1/8 P739 9-1/4
P544 47/64 P593 1- 1/2 P642 2- 17/64 P691 3-1/4 P740 9-3/8
P545 3/4 P594 1- 33/64 P643 2- 9/32 P692 3-3/8 P741 9-1/2
P546 49/64 P595 1- 17/32 P644 2- 19/64 P693 3-1/2 P742 9-5/8
P547 25/32 P596 1- 35/64 P645 2- 5/16 P694 3-5/8 P743 9-3/4
P548 51/64 P597 1- 9/16 P646 2- 21/64 P695 3-3/4 P744 9-7/8
P549 13/16 P598 1- 37/64 P647 2- 11/32 P696 3-7/8 P745 10 INCH
