1/4" Male-Female Standoffs

Back To Male-Female Standoffs Page

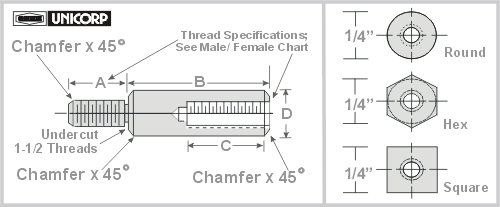

* External Thread has a 45° Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Metric Male-Female Standoffs
 Am. Standard Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter
1425 .187 .250 1466 1.469 .250 1507 2.750 .250
1426 .218 .250 1467 1.500 .250 1508 2.781 .250
1427 .250 .250 1468 1.531 .250 1509 2.812 .250
1428 .281 .250 1469 1.562 .250 1510 2.843 .250
1429 .312 .250 1470 1.593 .250 1511 2.875 .250
1430 .343 .250 1471 1.625 .250 1512 2.906 .250
1431 .375 .250 1472 1.656 .250 1513 2.937 .250
1432 .406 .250 1473 1.687 .250 1514 2.969 .250
1433 .437 .250 1474 1.718 .250 1515 3.000 .250
1434 .469 .250 1475 1.750 .250 1516 3.062 .250
1435 .500 .250 1476 1.781 .250 1517 3.125 .250
1436 .531 .250 1477 1.812 .250 1518 3.187 .250
1437 .562 .250 1478 1.843 .250 1519 3.250 .250
1438 .593 .250 1479 1.875 .250 1520 3.312 .250
1439 .625 .250 1480 1.906 .250 1521 3.375 .250
1440 .656 .250 1481 1.937 .250 1522 3.437 .250
1441 .687 .250 1482 1.969 .250 1523 3.500 .250
1442 .718 .250 1483 2.000 .250 1524 3.562 .250
1443 .750 .250 1484 2.031 .250 1525 3.625 .250
1444 .781 .250 1485 2.062 .250 1526 3.687 .250
1445 .812 .250 1486 2.093 .250 1527 3.750 .250
Part Number B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter
1446 .843 .250 1487 2.125 .250 1528 3.812 .250
1447 .875 .250 1488 2.156 .250 1529 3.875 .250
1448 .906 .250 1489 2.187 .250 1530 3.937 .250
1449 .937 .250 1490 2.218 .250 1531 4.000 .250
1450 .969 .250 1491 2.250 .250 1532 4.062 .250
1451 1.000 .250 1492 2.281 .250 1533 4.125 .250
1452 1.031 .250 1493 2.312 .250 1534 4.187 .250
1453 1.062 .250 1494 2.343 .250 1535 4.250 .250
1454 1.093 .250 1495 2.375 .250 1536 4.312 .250
1455 1.125 .250 1496 2.406 .250 1537 4.375 .250
1456 1.156 .250 1497 2.437 .250 1538 4.437 .250
1457 1.187 .250 1498 2.469 .250 1539 4.500 .250
1458 1.218 .250 1499 2.500 .250 1540 4.562 .250
1459 1.250 .250 1500 2.531 .250 1541 4.625 .250
1460 1.281 .250 1501 2.562 .250 1542 4.687 .250
1461 1.312 .250 1502 2.593 .250 1543 4.750 .250
1462 1.343 .250 1503 2.625 .250 1544 4.812 .250
1463 1.375 .250 1504 2.656 .250 1545 4.875 .250
1464 1.406 .250 1505 2.687 .250 1546 4.937 .250
1465 1.437 .250 1506 2.718 .250 1547 5.000 .250
TOLERANCES:
B-  Length up to 4" ± .005
4" to 6" ± .008
Over  6" ± .010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial
bar stock tolerances.
*No undercut Nylon & Delrin®
