1/2" Male-Male Standoffs
Back To Male-Male Standoffs Page

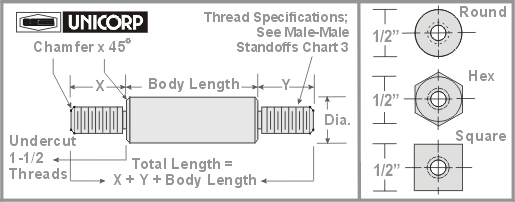

*External Thread has a 45°
Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit. |
|
|
CHOOSE and write down your PART NUMBER
then Go to
 Skip Step 1 |
|
Part Number |
B
Body
Length |
D
Diameter |
Thread
X |
Thread
Y |
Part
Number |
B
Body
Length |
D
Diameter |
Thread
X |
Thread
Y |
|
|
MM1901 |
.125 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1964 |
1.375 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1902 |
.140 |
.500 |
MM1965 |
1.437 |
.500 |
|
MM1903 |
.156 |
.500 |
MM1966 |
1.500 |
.500 |
|
MM1904 |
.171 |
.500 |
MM1967 |
1.562 |
.500 |
|
MM1905 |
.187 |
.500 |
MM1968 |
1.625 |
.500 |
|
|
|
MM1906 |
.203 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1969 |
1.687 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1907 |
.218 |
.500 |
MM1970 |
1.750 |
.500 |
|
MM1908 |
.234 |
.500 |
MM1971 |
1.812 |
.500 |
|
MM1909 |
.250 |
.500 |
MM1972 |
1.875 |
.500 |
|
MM1910 |
.265 |
.500 |
MM1973 |
1.937 |
.500 |
|
|
|
MM1911 |
.281 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1974 |
2.000 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1912 |
.296 |
.500 |
MM1975 |
2.062 |
.500 |
|
MM1913 |
.312 |
.500 |
MM1976 |
2.125 |
.500 |
|
MM1914 |
.328 |
.500 |
MM1977 |
2.187 |
.500 |
|
MM1915 |
.343 |
.500 |
MM1978 |
2.250 |
.500 |
|
|
|
MM1916 |
.359 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1979 |
2.312 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1917 |
.375 |
.500 |
MM1980 |
2.375 |
.500 |
|
MM1918 |
.390 |
.500 |
MM1981 |
2.437 |
.500 |
|
MM1919 |
.406 |
.500 |
MM1982 |
2.500 |
.500 |
|
MM1920 |
.421 |
.500 |
MM1983 |
2.562 |
.500 |
|
|
|
MM1921 |
.437 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1984 |
2.625 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1922 |
.453 |
.500 |
MM1985 |
2.687 |
.500 |
|
MM1923 |
.469 |
.500 |
MM1986 |
2.750 |
.500 |
|
MM1924 |
.484 |
.500 |
MM1987 |
2.812 |
.500 |
|
MM1925 |
.500 |
.500 |
MM1988 |
2.875 |
.500 |
|
|
|
MM1926 |
.515 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1989 |
2.937 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1927 |
.531 |
.500 |
MM1990 |
3.000 |
.500 |
|
MM1928 |
.546 |
.500 |
MM1991 |
3.062 |
.500 |
|
MM1929 |
.562 |
.500 |
MM1992 |
3.125 |
.500 |
|
MM1930 |
.578 |
.500 |
MM1993 |
3.187 |
.500 |
|
|
|
MM1931 |
.593 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1994 |
3.250 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1932 |
.609 |
.500 |
MM1995 |
3.312 |
.500 |
|
MM1933 |
.625 |
.500 |
MM1996 |
3.375 |
.500 |
|
MM1934 |
.640 |
.500 |
MM1997 |
3.437 |
.500 |
|
MM1935 |
.656 |
.500 |
MM1998 |
3.500 |
.500 |
|
|
|
MM1936 |
.671 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM1999 |
3.562 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1937 |
.687 |
.500 |
MM-2000 |
3.625 |
.500 |
|
MM1938 |
.703 |
.500 |
MM-2001 |
3.687 |
.500 |
|
MM1939 |
.718 |
.500 |
MM-2002 |
3.750 |
.500 |
|
MM1940 |
.734 |
.500 |
MM-2003 |
3.812 |
.500 |
|
|
|
MM1941 |
.750 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM-2004 |
3.875 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1942 |
.765 |
.500 |
MM-2005 |
3.937 |
.500 |
|
MM1943 |
.781 |
.500 |
MM-2006 |
4.000 |
.500 |
|
MM1944 |
.787 |
.500 |
MM-2007 |
4.062 |
.500 |
|
MM1945 |
.796 |
.500 |
MM-2008 |
4.125 |
.500 |
|
|
|
MM1946 |
.812 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM-2009 |
4.187 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1947 |
.828 |
.500 |
MM-2010 |
4.250 |
.500 |
|
MM1948 |
.843 |
.500 |
MM-2011 |
4.312 |
.500 |
|
MM1949 |
.859 |
.500 |
MM-2012 |
4.375 |
.500 |
|
MM1950 |
.875 |
.500 |
MM-2013 |
4.437 |
.500 |
|
|
|
MM1951 |
.890 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM-2014 |
4.500 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1952 |
.906 |
.500 |
MM-2015 |
4.562 |
.500 |
|
MM1953 |
.921 |
.500 |
MM-2016 |
4.625 |
.500 |
|
MM1954 |
.937 |
.500 |
MM-2017 |
4.687 |
.500 |
|
MM1955 |
.953 |
.500 |
MM-2018 |
4.750 |
.500 |
|
|
|
MM1956 |
.968 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
MM-2019 |
4.812 |
.500 |
See
Thread
Chart
Below |
See
Thread
Chart
Below |
|
|
MM1957 |
.984 |
.500 |
MM-2020 |
4.875 |
.500 |
|
MM1958 |
1.000 |
.500 |
MM-2021 |
4.937 |
.500 |
|
MM1959 |
1.062 |
.500 |
MM-2022 |
5.000 |
.500 |
|
MM1960 |
1.125 |
.500 |
MM-2023 |
5.250 |
.500 |
|
MM1961 |
1.187 |
.500 |
MM-2024 |
5.500 |
.500 |
|
MM1962 |
1.250 |
.500 |
MM-2025 |
5.750 |
.500 |
|
MM1963 |
1.312 |
.500 |
MM-2026 |
6.000 |
.500 |
|
Thread Chart for Male-Male Standoffs Part Number
|
|
|
Thread Size
|
Thread Code
& Thread Length |
|
|
8-
32
|
832 - 1 |
.375 |
| 8-
32 |
832
- 2 |
.437 |
|
10-
24 |
1024
- 1 |
.375 |
|
10-
24
|
1024 - 2 |
.500 |
|
10-
32
|
1032 - 1 |
.375 |
|
10-
32
|
1032 - 2 |
.500 |
|
1/4-
20 |
1420
- 1 |
.500 |
|
1/4-
20
|
1420 - 2 |
.625 |
|
1/4-
28 |
1428 - 1 |
.500 |
|
1/4-
28 |
1428 - 2 |
.625 |
|
*Mix and Match Different Threads and Lengths For Each Part. |
Tolerances:
For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length- Length up to 6"
± .005 / over 6" ±
.010
Thread Length Tolerance is
± .005
Tolerances: For Nylon & Delrin®
Body Length- For all Lengths the Tolerance is ±
.010
Thread Length Tolerance is
± .010
Diameter: Standard commercial bar stock tolerances.
* No
undercut Nylon & Delrin® |
 |
|
