1/2" Male-Female Standoffs

Back To Male-Female Standoffs Page

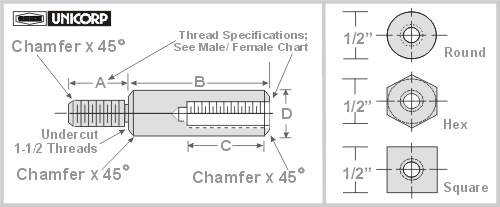

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Metric Male-Female Standoffs
 Am. Standard Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter
1902 .500 .500 1917 1.437 .500 1932 3.250 .500
1903 .562 .500 1918 1.500 .500 1933 3.375 .500
1904 .625 .500 1919 1.625 .500 1934 3.500 .500
1905 .687 .500 1920 1.750 .500 1935 3.625 .500
1906 .750 .500 1921 1.875 .500 1936 3.750 .500
1907 .812 .500 1922 2.000 .500 1937 3.875 .500
1908 .875 .500 1923 2.125 .500 1938 4.000 .500
1909 .937 .500 1924 2.250 .500 1939 4.125 .500
1910 1.000 .500 1925 2.375 .500 1940 4.250 .500
1911 1.062 .500 1926 2.500 .500 1941 4.375 .500
1912 1.125 .500 1927 2.625 .500 1942 4.500 .500
1913 1.187 .500 1928 2.750 .500 1943 4.750 .500
1914 1.250 .500 1929 2.875 .500 1944 5.000 .500
1915 1.312 .500 1930 3.000 .500 1945 5.500 .500
1916 1.375 .500 1931 3.125 .500 1946 6.000 .500
            1947 6.500 .500
            1948 7.000 .500
TOLERANCES:
B-  Length up to 4" ± .005
4" to 6" ± .008
Over 6" ±.010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial bar stock tolerances.
*No undercut Nylon & Delrin®
