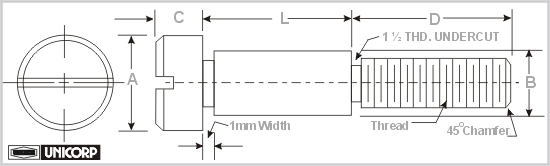

Metric Slotted Shoulder Screws
13mm Diameter
*External Thread has a 45°
Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit. |
|
|
CHOOSE and write down your PART NUMBER
then Go to
Skip Step 1 |
|
Part No. |
A |
B |
C |
D |
L |
Thread |
|
|
MSCS511- 1 |
13 |
9 |
6 |
9.4 |
6 |
M6 x 1 |
|
|
MSCS511- 2 |
13 |
9 |
6 |
9.4 |
7 |
M6 x 1 |
|
|
MSCS511- 3 |
13 |
9 |
6 |
9.4 |
8 |
M6 x 1 |
|
|
MSCS511- 4 |
13 |
9 |
6 |
9.4 |
9 |
M6 x 1 |
|
|
MSCS511- 5 |
13 |
9 |
6 |
9.4 |
10 |
M6 x 1 |
|
|
MSCS511- 6 |
13 |
9 |
6 |
9.4 |
11 |
M6 x 1 |
|
|
MSCS511- 7 |
13 |
9 |
6 |
9.4 |
12 |
M6 x 1 |
|
|
MSCS511- 8 |
13 |
9 |
6 |
9.4 |
13 |
M6 x 1 |
|
|
MSCS511- 9 |
13 |
9 |
6 |
9.4 |
14 |
M6 x 1 |
|
width="770" height="17" bordercolorlight="#C0C0C0" bgcolor="#FFD9B9" bordercolor="#000000" align="center" style="border:2px solid #C0C0C0; padding-left: 4; padding-right: 4; padding-top: 1; padding-bottom: 1; font-family:Arial; font-size:7pt; font-weight:bold" bordercolordark="#C0C0C0" colspan="8">
|
MSCS511- 10 |
13 |
9 |
6 |
9.4 |
15 |
M6 x 1 |
|
|
MSCS511- 11 |
13 |
9 |
6 |
9.4 |
16 |
M6 x 1 |
|
|
MSCS511- 12 |
13 |
9 |
6 |
9.4 |
17 |
M6 x 1 |
|
|
MSCS511- 13 |
13 |
9 |
6 |
9.4 |
18 |
M6 x 1 |
|
|
MSCS511- 14 |
13 |
9 |
6 |
9.4 |
19 |
M6 x 1 |
|
|
MSCS511- 15 |
13 |
9 |
6 |
9.4 |
22 |
M6 x 1 |
|
|
MSCS511- 16 |
13 |
9 |
6 |
9.4 |
25 |
M6 x 1 |
|
|
MSCS511- 17 |
13 |
9 |
6 |
9.4 |
28 |
M6 x 1 |
|
|
MSCS511- 18 |
13 |
9 |
6 |
9.4 |
31 |
M6 x 1 |
|
|
Applicable Tolerances |
|
B |
C |
L |
|
+.000
/ -
.026 |
±
.015
|
±
.015
|
|
Applicable Specifications |
|
Stainless Steel |
Passivate |
Threads |
|
QQ- S- 763, Class 303, Cond. A. (Non- Magnetic) |
Per Mil-F-14072-A
(EL) E 300 |
Class 6G
per handbook
H.28, Part 1 |
|
Slotting Information |
|
Thread |
Width |
Depth |
|
M3 x 0.5 |
1.2 |
1.6 |
|
M3.5 x 0.6 |
1.2 |
1.6 |
|
M4 x 0.7 |
1.2 |
1.6 |
|
M5 x 0.8 |
1.6 |
2 |
|
M6 x 1 |
2 |
2.4 |
|
M8 x 1 |
2.4 |
2.8 |
|
Standard in Type 303 Stainless Steel. Other materials available on special order. |
 |
|
